Outdoor Full Color 160X160 DIP LED Display Panel Screen for Video Wall Advertising (P6, P8, P10, P16)

Basic Info

Model No.:  LW-FO 10

Product Description

Model NO.: LW-FO 10 IP Rating: IP65 Pixel Configuration: 1R, 1G, 1B Average Power Consumption: 300W / m² Scanning Mode: 1/4 Scan Application: Advertising Pixel Configuration: 1r1g1b DIP346 Cabinet Size: 960X960X180 Brightness: More Than 7000CD/M2 Viewing Angle: H: 110 V: 60 Display Capability: Text, Graph and Video Trademark: LED World, OEM, ODM Specification: CE UL Rohs etc HS Code: 8528591090 Tube Chip Color: Full Color Pixel Pitch: 10mm Display Function: Video Display Pixel Density: 10000 dot / m² Display Type: LED Video Display Certification: CE, RoHS, UL, CCC, ETL Module Size: 160X160 Cabinet Weight: 58kg Viewing Distance: >16m Cabinet Material: Cold Rolled Steel or Aluminum IP Rate: Front IP65 Transport Package: Wooden/Case Carton Box or as Required Origin: Made in China P10 outdoor Full Color Led Display,Led Screen.LED Signs,Led Video Wall
Wholesale High quality, high density, HD Outdoor Fixed LED Display

Features:

1, Metal plate material cabinet at your will .

2, Fast delivery time, about 10 days.

3, Competitve prices witg good performance .

4, Long life-span.

5, More options according your site(The models as before ).
Outdoor Full Color 160X160 DIP LED Display Panel Screen for Video Wall Advertising (P6, P8, P10, P16)


Items LW-FO6-S LW-P8-FO LW-P8-FO LW-P10-FO LW-P16-FO
Pixel
Configuration
1R1G1B
SMD3535
1R1G1B
SMD3535
1R1G1B
DIP246
1R1G1B
DIP345
1R1G1B
DIP345
Pixel Pitch 6mm 8mm 8mm 10mm 16mm
Pixel Density 27,777 15,625 15,625 10,000 3,906
Module Size
(mm)
192x96
or 192x192
256x128 256x128 160x160 256x128/256x256
Pixels/Module 32x16 or 32x32 32x16 32x16 16x16 16x8/16
Cabinet Size
(mm)(WxHxD)
960x960x190 1024x1024
x190
1024x1024
x190
960x960x190 1024x1024
x190
Pixels/Cabinet 160x160 128x128 128x128 96x96 64x64
Cabinet Weight 42KG 48KG 58KG 51KG 58KG
Brightness >6000cd/ >5000cd/ >7000cd/ >7000cd/ >7000cd/
Viewing Distance >6m >8m >8m >10m >16m
Power
Consumption
(W/)
Max: 1300
Ave: 260
Max: 1000
Ave: 260
Max: 1000
Ave: 300
Max: 1000
Ave: 300
Max: 1000
Ave: 200
Driver Mode 1/4 scan 1/4 scan 1/4 scan 1/4 scan Static Latching
Viewing Angle H: 120°;   V: 120° H: 110°;   V: 60°
Cabinet Material Cold Rolled Steel or aluminum
Refresh Rate 300-3000HZ adjustable
LED Life 100,000 hours
Supply Voltage AC220V/50HZ; AC110V/60HZ
Operating Temperature -20oC ~ +50oC
Operating Humidity 10% - 90%
Gray Scale Red, Green and Blue each 16K
Display Color 4096 Billion
IP Rating Front IP65
Display Capability Text, Graph and Video

After sales maintenance
1.Receive the cargo
Make sure the cargo in sealing condition and the cargo storage temperature
between - 30oC  and 60oC when you receive the goods from the customs
2. Install and use the product
Please adopt preheating model to light it up and keep 30% brightness for 0.5-2 hours when you use it . Keep it work 8 hours or above continually per day will be
 better. It will be better to use it at least once a week.
3. Cleaning
Ensure to use soft brush to clean the display surface and PROHIBIT any liquid
when doing cleaning.

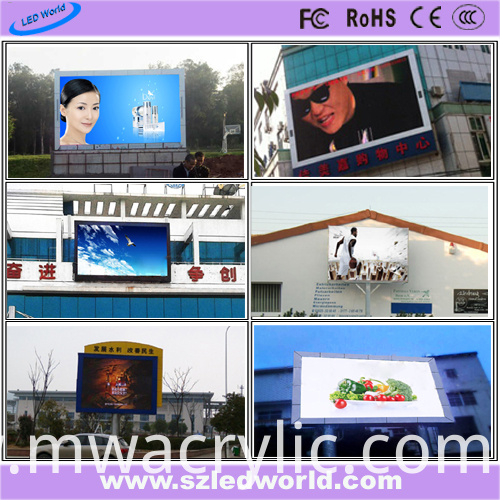

Project case:
Outdoor Full Color 160X160 DIP LED Display Panel Screen for Video Wall Advertising (P6, P8, P10, P16)

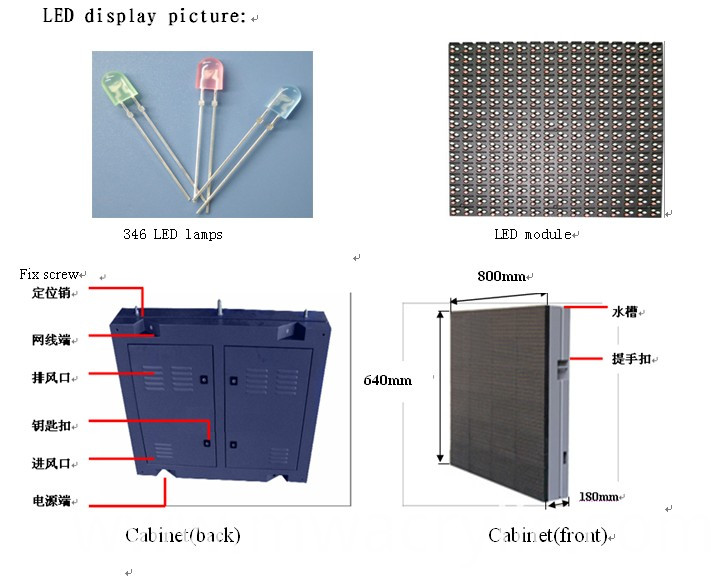

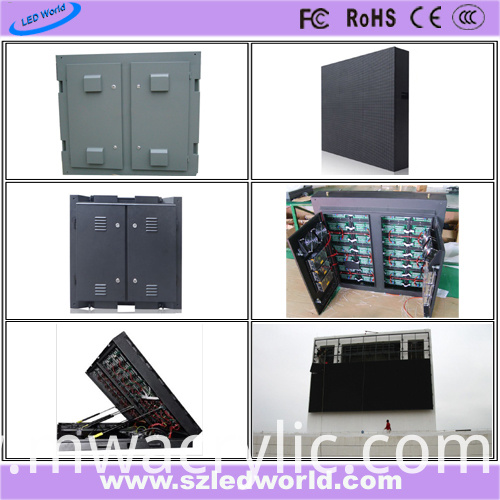

product detail:
Outdoor Full Color 160X160 DIP LED Display Panel Screen for Video Wall Advertising (P6, P8, P10, P16)

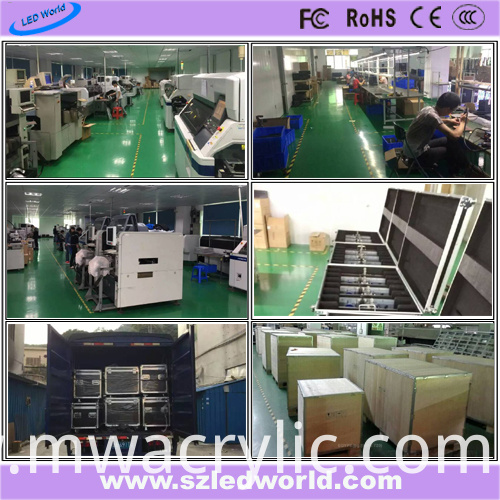

Workshop:
Outdoor Full Color 160X160 DIP LED Display Panel Screen for Video Wall Advertising (P6, P8, P10, P16)
FAQ:
1. May I know the Minimum order for your products?
For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen.
2. What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.

SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
3. How long can I get the cargos?
Our production time is about 10-25 working days.
When we confirmed the order, we can start production after receiving your deposit       (40% TT in advance).
we will update the production details in time.
we will notice you before finish and after delivery the goods to you after we get full payment.
About the time from start port to destination, it depends on the distance and the state of the forwarder.
4. May I know the package details?
For fixed installation, we use veneer case, usually 4 cabinets in 1 veneer case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
5. Besides this product, may I have other options?
Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED Advertising Player and kinds of video processor.


Contact us if you need more details on Led Display Screen. We are ready to answer your questions on packaging, logistics, certification or any other aspects about LED Display、LED Screen. If these products fail to match your need, please contact us and we would like to provide relevant information.
