Home > Products > Outdoor Fixed LED Display > SMD3535 P10 Outdoor Fixed Full Color LED Display Panel Board Screen Factory Advertising

SMD3535 P10 Outdoor Fixed Full Color LED Display Panel Board Screen Factory Advertising

Productivity:
10000sqm Per Moth
Place of Origin:
Made in China
Supply Ability:
10000sqm Per Moth
Certificate:
CE, RoHS, UL, CCC, ETL
  • Mr. Daniel Lin

Basic Info

Model No.:  LW-FO 10

Product Description

Model NO.: LW-FO 10 IP Rating: IP65 Pixel Configuration: 1R, 1G, 1B Average Power Consumption: 300W / m² Scanning Mode: 1/4 Scan Application: Advertising Pixel Configuration: 1r1g1b DIP346 Cabinet Size: 960X960X180 Brightness: More Than 7000CD/M2 Viewing Angle: H: 110 V: 60 Display Capability: Text, Graph and Video Trademark: LED World, OEM, ODM Specification: CE UL Rohs etc HS Code: 8528591090 Tube Chip Color: Full Color Pixel Pitch: 10mm Display Function: Video Display Pixel Density: 10000 dot / m² Display Type: LED Video Display Certification: CE, RoHS, UL, CCC, ETL Module Size: 320X160 Cabinet Weight: 36kg Viewing Distance: >16m Cabinet Material: Cold Rolled Steel or Aluminum IP Rate: Front IP65 Transport Package: Wooden/Case Carton Box or as Required Origin: Made in China Features:

1, Metal plate material cabinet at your will .

2, Fast delivery time, about 10 days.

3, Competitve prices witg good performance .

4, Long life-span.

5, More options according your site(The models as before ).
Items Parameter
No. LW-FO10
Pixel pitch 10mm
Pixels SMD 3in1(3535)
Pixel density 10000pixels/sq.m
Cabinet resolution 96×64dots
Cabinet dimensions 960mm×960mm×154mm
Cabinet material Iron or Aluminium
Cabinet weight 36kg/cabinet
Module size 320mm×160mm
Module resolution 32dot×16dot
Brightness >4500nits
Driving method Constant current
1/4scan
Refresh frequency ≥200Hz
Gray level 1024~16384
Gray scale/color >16.7M
Frame frequency >60Hz
Viewing angle 120°
Power(maximum) 620W/sq.m
Ingress protection IP65
Temperature range -15~60°C
Humidity range 10%~90%RH
 Control system Synchronous control systemAsynchronous control system
Input signal AV S-VIDEO VGA DVI HDMI YPBPR SDI DP
After sales maintenance
1.Receive the cargo
Make sure the cargo in sealing condition and the cargo storage temperature
between - 30oC  and 60oC when you receive the goods from the customs
2. Install and use the product
Please adopt preheating model to light it up and keep 30% brightness for 0.5-2 hours when you use it . Keep it work 8 hours or above continually per day will be
 better. It will be better to use it at least once a week.
3. Cleaning
Ensure to use soft brush to clean the display surface and PROHIBIT any liquid
when doing cleaning.

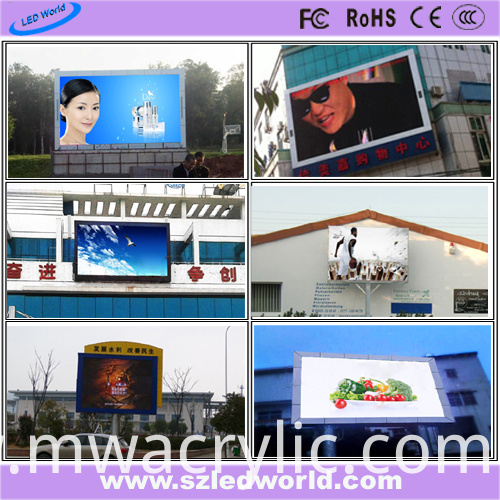

Project case:
SMD3535 P10 Outdoor Fixed Full Color LED Display Panel Board Screen Factory Advertising

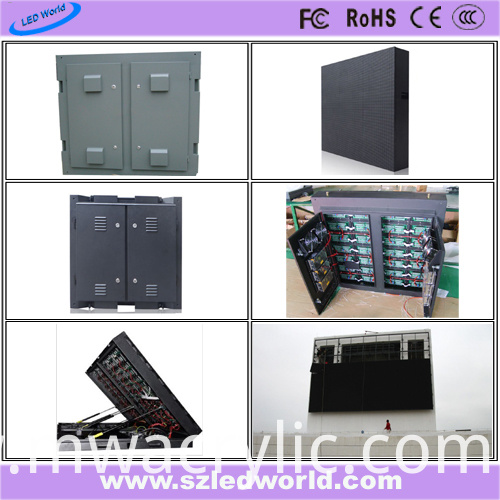

product detail:
SMD3535 P10 Outdoor Fixed Full Color LED Display Panel Board Screen Factory Advertising

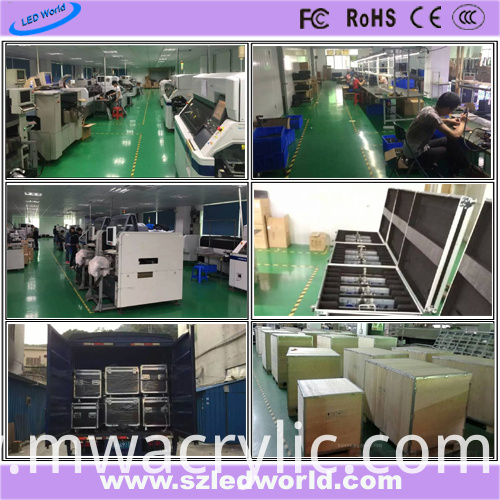

Workshop:
SMD3535 P10 Outdoor Fixed Full Color LED Display Panel Board Screen Factory Advertising
