SMD High Brightness Rental LED Displays

  • SMD High Brightness Rental LED Displays
  • SMD High Brightness Rental LED Displays
  • SMD High Brightness Rental LED Displays
  • SMD High Brightness Rental LED Displays

SMD High Brightness Rental LED Displays

Basic Info

Model No.: P3.91 4.81 5.95

Product Description

Welcome To Joy LED


Product Description
Pixel Pitch
3.91mm
4.81mm
5.95mm
Pixel Resolution
65,536dots/m²
43,264dots/m²
28,224dots/m²
Module Resolution
(W)64 x (H)64pixels
(W)52 x (H)52 pixels
(W)42 x (H)42 pixels
Module Size
(W)250mm x (H)250mm
(W)250mm x (H)250mm
(W)250mm x (H)250mm
Module Weight
Around 720g
Around 720g
Around 720g
Driver Mode
Current Driving
Current Driving
Current Driving
Scan Mode
1/32S
1/13S
1/7S
Operation Voltage
DC5V±10%
DC5V±10%
DC5V±10%
Max Module Current
Around 8A(typical)
Around 7.5A(typical)
Around 8A(typical)
Max Power Consumption
Around 40W(typical)
Around 37.5W(typical)
Around 40W(typical)
Power Interface
VH4
VH4
VH4
Signal Interface
HUB75D (IDC16)
HUB75D (IDC16)
HUB75D (IDC16)
Max Brightness
6500cd/m²
6500cd/m²
6500cd/m²
Color Temperature
9500K
9500K
9500K
Viewing Angle(H/V)
120°/120°
120°/120°
120°/120°
Best Viewing Distance
4-40m
5-50m
6-60m
Grey Level
14bits
14bits
14bits
Brightness Calibration
supported
supported
supported
Refresh Rate
≥1920Hz
≥1920Hz
≥1920Hz
Brightness Adjust Rang
0 to 255 adjustable
0 to 255 adjustable
0 to 255 adjustable
Life Span
50,000 Hour
50,000 Hour
50,000 Hour
Operation Temperature
-20 ℃ ~ 60 ℃
-20 ℃ ~ 60 ℃
-20 ℃ ~ 60 ℃
Operation Humidity
10%-90%RH without condensation
10%-90%RH without condensation
10%-90%RH without condensation
Stock Temperature
-40 ℃ ~ 80 ℃
-40 ℃ ~ 80 ℃
-40 ℃ ~ 80 ℃

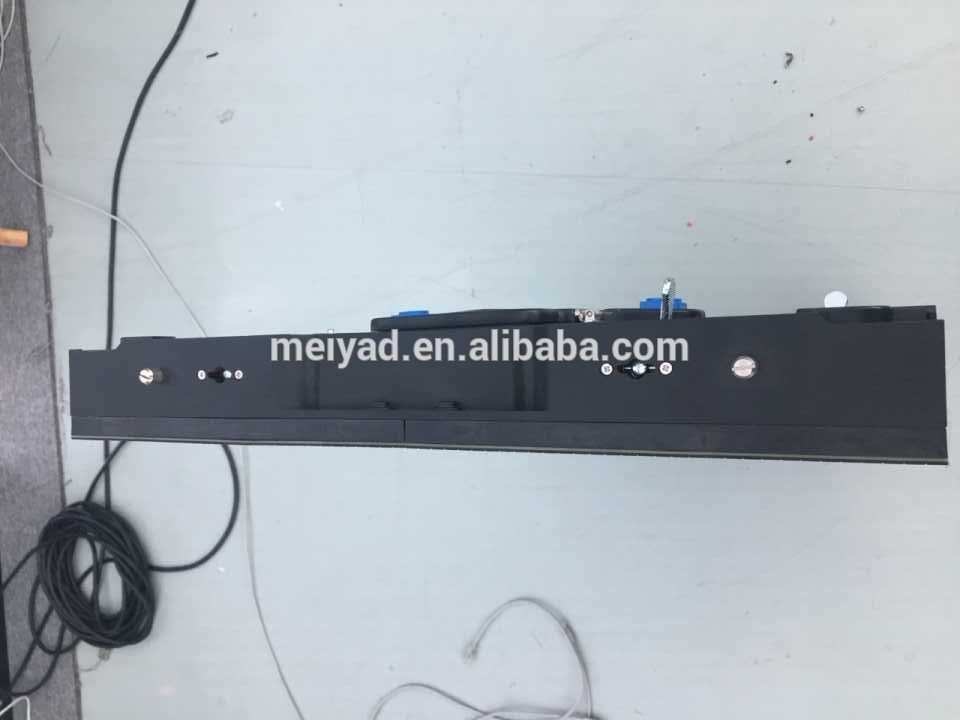

Detailed Images




Shenzhen Joy LED Display Co., Ltd.



Shenzhen Joy Led Display Co., Ltd. is a LED electronic display and LED lighting application products. It is invested by three senior LED industry professionals in China. It integrates R&D, production, sales, engineering, and after-sales services. High-tech companies, adhering to the unique advantages in the field of LED display and control, the company has fully introduced the ISO9000 series quality management system, the production process in strict accordance with the requirements of RoHS and CE directives, pay attention to every job details in the manufacturing process management, Lean management, strive for perfection, is a medium-sized enterprise producing high-tech electronic display products.

At present, the business scope has covered more than 30 countries and regions in the world, and has branches or offices in some areas, involving entertainment, sports, financial securities, communications, transportation, industrial control, media advertising, labor market, hospitals, There are hundreds of users in the fields of schools, industry and commerce, taxation, and technical supervision. The company's products have been welcomed by a large number of Chinese and foreign customers. At the same time, the company's brand has also received praise and recognition from all walks of life.
Joy LED display adhering to the "I am the user's" service spirit, established a perfect product quality system and after-sales service network, has a large-scale support for the production of the screen LED LED tube, LED suite, PCB board and several other international advanced level The professional supporting factory is a vertically integrated professional enterprise in the industry.

The company now has a group of industry experts, senior engineers and technicians with nearly 30 years of experience in R&D and production, and a large number of employees with high overall quality and professionalism. They have experienced several times of international and domestic national-level mega-projects. , participated in the construction of many major domestic projects, the company has a 4000m2 anti-static clean production workshop, imported automatic SMD placement machine, automatic AI automatic plug-in production line, automatic lead-free wave soldering machine, 10 temperature zone automatic return Welders, automatic plastic sealant production lines and other sets of international advanced production equipment. In the research and development and manufacturing process, the product focuses on strengthening the high-tech connotation, strict quality control, strict process management, and rigorous marketing operations. This all guarantees the quality of our products. We will continue to develop cost-effective products that are more economical and easier to operate.
